Ultrasonic Processor
AQUEOUS BASED
Ultrasonic Processor
OSCAR Ultrasonic Processor in different models is used for research-related work as well as production purposes in various fields.
The Ultrasonic generator is of solid-state version, the latest card type (LOT based) is compact, lightweight, high efficient found to be most suitable for cell disruption. The transducer, consisting of piezoelectric crystals, converts the electrical output of the generator into concentrated and intensified by a Titanium step horn is passed at the tip. The energy radiates from the tip to the material being treated.
Acoustic energy irradiated from probe tip forces the fluid to extremely high pressure and is responsible for the physical phenomenon called cavitation. Cavitation is caused for the sudden formation and collapse of high-pressure bubbles within the fluid. Extremely high pressure, temperature variations and shock waves are involved in the process.
Ultrasonic Processor / Probe Sonicator / Ultrasonicator Probe / Ultrasonic Homogeniser / High Power

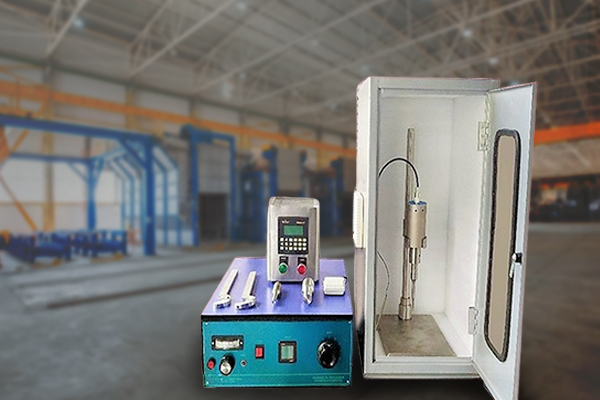

OSCAR ULTRASONICS MAKE ULTRASONIC PROCESSOR CONSISTS OF ULTRASONIC GENERATOR, ULTRASONIC CONVERTOR, STANDARD PROBES, SS SOUND ABATING ENCLOSURE AND SS STAND ASSEMBLY AND REQUIRED ACCESSORIES AS PER CUSTOMER NEEDS.
Applications:
Homogenization of substances
Disintegration of cells, tissues etc.
DNA/RNA shearing
Degassing of liquids
Dispersion of Nano particles
Molten Metal processing
And many other Lab applications
Models:
SONAPROS PR-250, SONAPROS PR-250 MP, SONAPROS PR-500, SONAPROS PR-500 MP, SONPROS PR-750 MP & SONAPROS PR-1000 MP
| Model: | SONAPROS PR-250MP | SONAPROS PR-500MP | SONAPROS PR-750MP | SONAPROS PR-1000MP |
|---|---|---|---|---|
| Ultrasonic Power | 250 Watts | 500 Watts | 750 Watts | 1000 Watts |
| Ultrasonic Frequency | 20 KHz. | 20 KHz. | 20 KHz. | 20 KHz. |
| Processing Capacity | Up to 250 ml. | Up to 500 ml. | Up to 750 ml. | Up to 1000 ml. |
| Probes / Horns | Titanium alloys Solid tip probe of 3mmØ, 6mmØ & 12mmØ | Titanium alloys Solid tip probe of 3mmØ, 6mmØ, 12mmØ & 18mmØ | Titanium alloys Solid tip probe of 3mmØ, 6mmØ, 12mmØ, 18mmØ & 25mmØ | Titanium alloys Solid tip probe of 3mmØ, 6mmØ, 12mmØ, 18mmØ, 25mmØ & 38mmØ |
| Amplitude Control | 0-100%, Manually by suitable variac | 0-100%, Manually by suitable variac | 0-100%, Manually by suitable variac | 0-100%, Manually by suitable variac |
| OR | ||||
| Amplitude control (Digitally) (optional) | 10-100% | 10-100% | 10-100% | 10-100% |
| Control Features |
Microprocessor based control Programmable Capable of storing 10 programs or more at a time, which can be edited as per requirement LCD screen with user prompts, Alphanumeric display Process Timer 0-99.9 min. with elapsed time indicator Full Function Pulsar ON/OFF Pulsar cycle independently controllable 1-59 seconds (Pulse Mode) Continuous sonication Mode Integrated temperature control and with SS temperature probe to monitor solvent temperature |
|||
| Sound Damper Box | Made of SS 304 material elegantly buffed & polished, well ventilated and with transparent door. This will be suitable to accommodate the stand assembly along with convertor / Horn. | |||
| Stand assembly | Consists of Stand base, pillar, Convertor Holder made of SS 304 and suitable knob for height adjustment of probe | |||
| Ultrasonic Generator | Solid-state, LOT based card type, housed in separate MS powder coated cabinet. | |||
| Ultrasonic Convertor / Velocity Horn | Made of piezoelectric Lead Zirconated Titanate crystals (PZT) sandwiched between titanium blocks with aluminium casing to convert the electrical energy from ultrasonic generator to mechanical energy (vibrations / Ultrasonic cavitation) | |||
| Input Supply | Single Phase, 220V AC – 230V AC & 50/60Hz. | |||
| Current Meter | To indicate the input current | |||
| Accessories |
Suitable foot switch will be provided for hands free operation Spanner set for changing the probes |
|||
| Installation & Commissioning | Free of cost by us | |||
| Standard Warranty | One Year | |||
| Documents | Operating & Instruction Manual will be provided along with equipment | |||
| Additional Accessories / Features provide on request at extra cost | Colour Touch Screen Display, Process Timer: Up to 999 Mins., Chiller unit for convertor cooling to prevent overheating during continuous mode / Long running process, Furnace for processing molten metal, Continuous Flow cell for processing large volume, Cup Probes / Horns, Jacket Beakers, Reactor vessel, cooling jacket beaker, Mechanical Stirrer, Multi tips Probe / Horns, Replaceable tips with threaded end, SS Lab Jack etc. | |||
