TECHNICAL SPECIFICATIONS:
| Sr. No | Items/ Description | Specification |
|---|---|---|

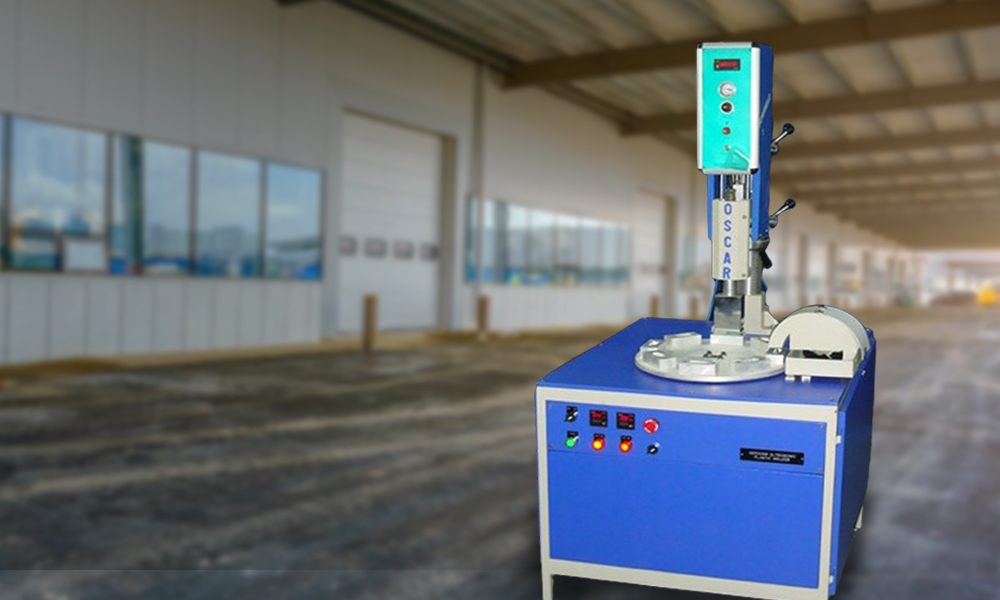

| 1 | Type/Model | Table Model – Sonaweld PW-1000 consists of: Ultrasonic Generator 1000 Watts Pneumatically operated press Converter Assembly Booster – 1 No. (1:1.5 gain) |
| 2 | Ultrasonic Output Power | 1000 Watts |
| 3 | Component to be welded | All Thermoplastics |
| 4 | Welding Surface | 18mmØ approx. |
| 5 | Control System | Microprocessor based (PLC) |
| 6 | Generator Data | Ultrasonic power 1000Watts at full load Solid-state version – Card type user friendly 100% indigenously developed Easy to tune with different type of horns Instrument cooling fans provided for internal cooling of components Frequency: 20 + 1KHz Power: 230V Single phase 50 Hz. through Voltage stabilizer only |
| 7 | Converter Data: | Sandwich type with PZT8 type crystals (imported) fully insulated and housed in aluminium casing with ventilation tuned for continuous operation up to eight hours |
| 8 | Safety features: | Fuses for over voltage and over current Over current / overload tripping circuit Double palm buttons to engage both hands of the operator while welding |
Note:
Fixture as per your sample will be Provided at extra cost.
Your fixture dimensions may please be provided for making suitable provision for mounting the fixture on the base plate.
You will also send adequate no. of samples for trials (If required).
Voltage stabilizer / CVT is not applicable in case you have UPS facility to take care of power fluctuation.
QUALITY:
The materials used in the manufacture of the system will be of prime quality and of the specified grade and fabrication/assembly/workmanship will be of highest standard. All bought out components other than those not specified will be of reputed make, proven and reliable.
