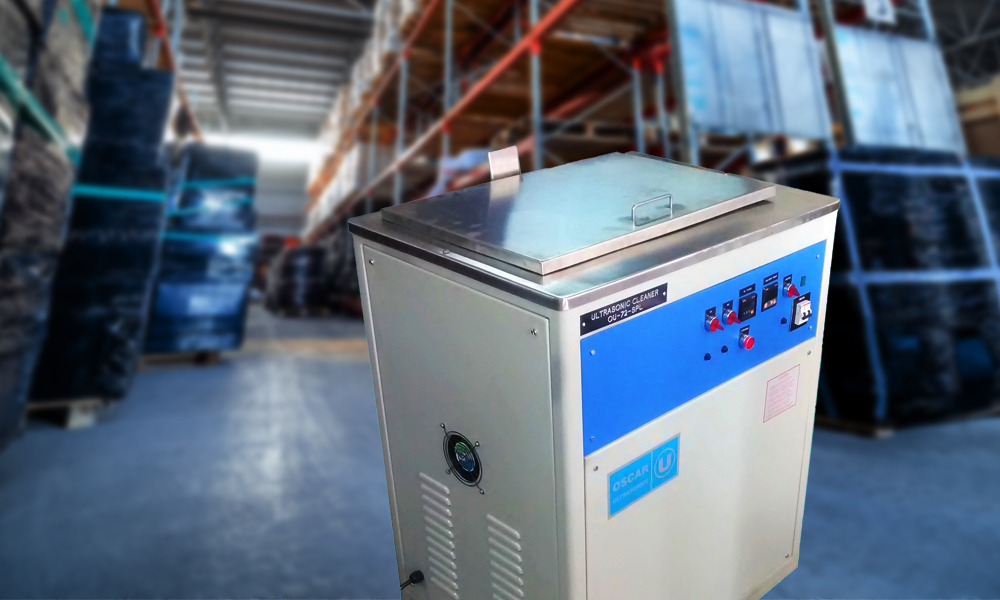

OU-72
TECHNICAL SPECIFICATIONS:
| Sr. No | Items/ Description | Specification |
|---|---|---|
| 1 | Ultrasonic Power | 1000 Watts (Avg.) |
| 2 | Tank Size (effective) | 600 x 400 x 300 mm (L x W x H) approximate |
| 3 | Tank Capacity | 72 Ltrs. (Approx.) |
| 4 | Tanks Material | SS 304, 16G |
| 5 | Outer Cabinet | MS Powder coated |
| 6 | Ultrasonic Frequency | 34 + 3 KHz |
| 7 | Transducers | PZT sandwich type bonded to the bottom of the tank |
| 8 | Generator | Built-in, solid state type |
| 9 | Input Supply | 230V, Single Phase, 50 Hz |
| 10 | Drain Outlet | SS Ball Valve ½” BSP |
| 11 | Timer | Mechanical Timer 0-30 Min |
| 12 | Heater | SS strip type 2 KW heater thermostatically controlled |
| 13 | SS Lid | SS 304, 18G |
| 14 | SS Basket | SS Rod frame with ½” SS Sq. mesh skirting |
| 15 | Overload Protection | By Fuses / MCBs |
