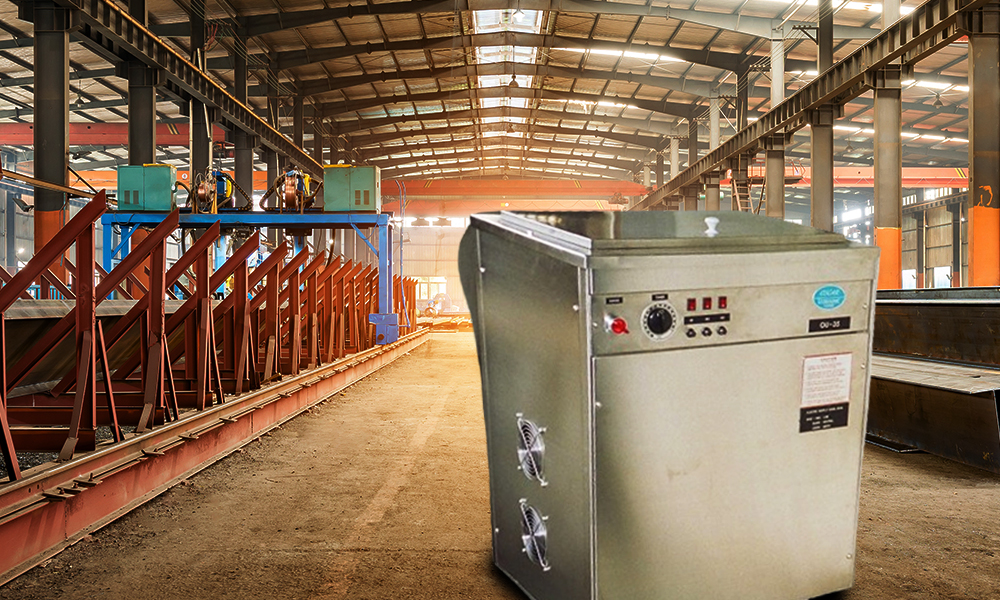

OU-35
TECHNICAL SPECIFICATIONS:
| Sr. No | Items/ Description | Specification |
|---|---|---|
| 1 | Ultrasonic Power | 750 Watts (Avg.) |
| 2 | Tank Size | 500 x 350 x 200 mm (L x W x H) approx. |
| 3 | Overall size (Dimension) | 700 X 500 X 800 mm (L x W x H) approx. |
| 4 | Tank Capacity | 35 Ltrs.(Approx.) |
| 5 | Tank material | SS 304, 16G |
| 6 | Frequency | 34 + 3 KHz. |
| 7 | Generator | Built in Solid state type |
| 8 | Outer Cabinet | MS Powder coated |
| 9 | Transducers | PZT sandwich type bonded to the bottom of the tank |
| 10 | Input Supply | 230 VAC, Single Phase, 50 Hz |
| 11 | SS Lid | SS 304, 18G |
| 12 | SS Basket | SS 304 wire mesh type |
| 13 | Timer | Mechanical Timer 0-30 Min. |
| 14 | Heater | SS tube type 2000 watts thermostatically controlled |
| 15 | Temperature control | Digital type to indicate and control bath temperature |
| 16 | Drain Outlet | SS Ball Valve ½” BSP |
| 17 | Overload Protection | By Fuses |
