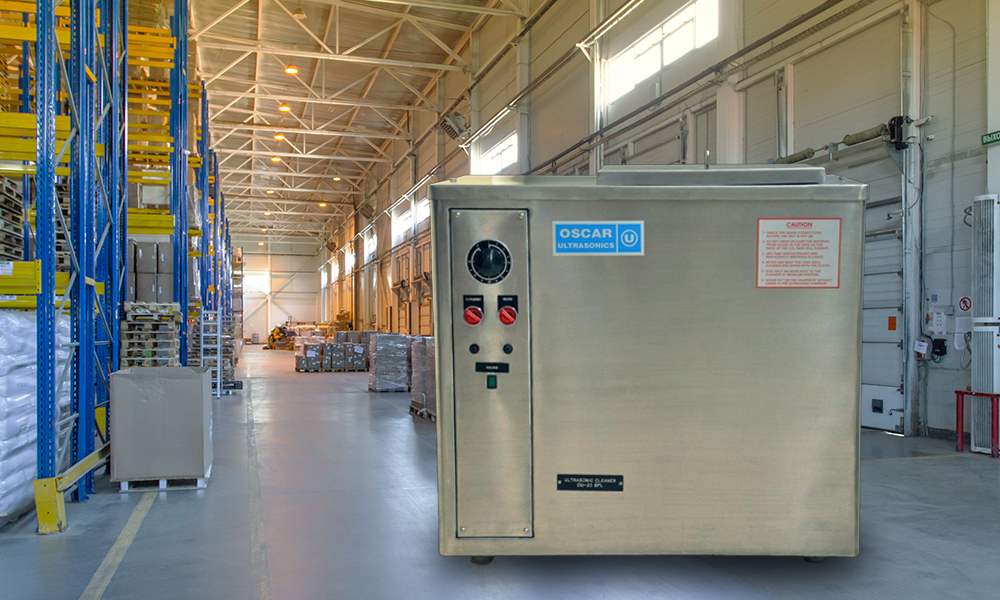

OU-23
TECHNICAL SPECIFICATIONS:
| Sr. No | Items/ Description | Specification |
|---|---|---|
| 1 | Ultrasonic Power | 500 Watts (Avg.) |
| 2 | Tank Size | 450 x 350 x 150 mm (L x W x H) approximate. |
| 3 | Tank Capacity | 23 Ltrs. (Approx.) |
| 4 | Tank material | SS 304, 16 G |
| 5 | Frequency | 34 + 3 KHz. |
| 6 | Generator | Built-in Solid-state type |
| 7 | Outer Cabinet | SS 304 18G |
| 8 | Transducers | PZT sandwich type bonded to the bottom of the tank |
| 9 | Input Supply | 230 VAC, Single Phase, 50 Hz |
| 10 | SS Lid | SS 304, 18G |
| 11 | SS Platform | SS 304, wire mesh type |
| 12 | Timer | Mechanical Timer 0-30 Min. |
| 13 | Heater | SS strip type 500W |
| 14 | Drain Outlet | SS Ball Valve ½” BSP |
| 15 | Overload Protection | By Fuses |
