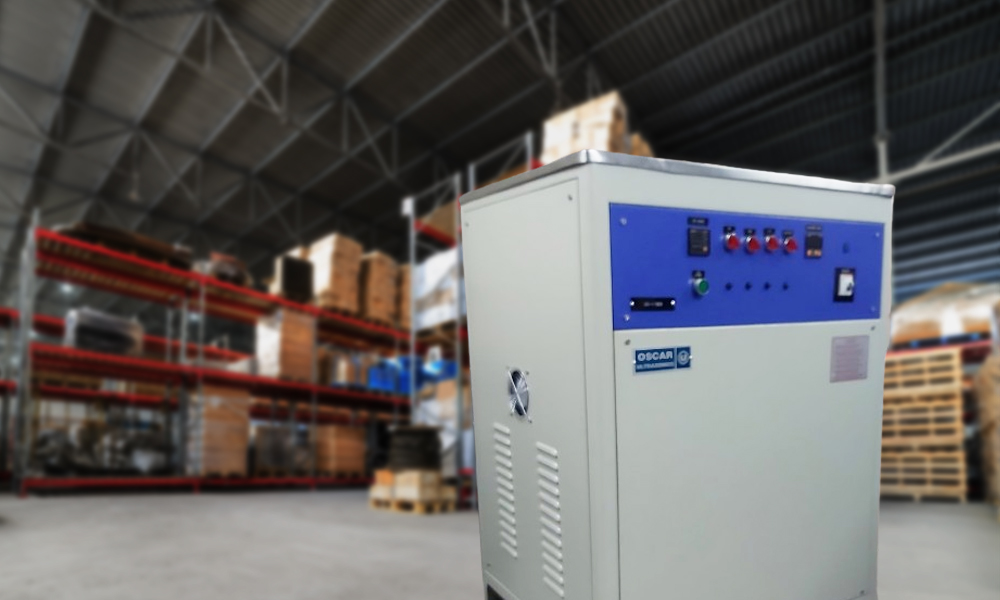

OU-180
TECHNICAL SPECIFICATIONS:
| Sr. No | Items/ Description | Specification |
|---|---|---|
| 1 | Tank Size | 900 x 500 x 400mm |
| 2 | Tank Capacity | 180 Ltrs |
| 3 | Tanks Material | 304,14 G |
| 4 | Ultrasonic Power | 2000 Watts (Avg.) |
| 5 | Transducers | PZT Type bonded to the bottom of the tank. |
| 6 | Input Supply | 415 V, Three Phases, 50 Hz. |
| 7 | Frequency | 34 + 3KHZ |
| 8 | Heater Facility | SS Tube type 8 KW to heat up the solvent up to 60 Deg. Cnt. |
| 9 | Temperature Controller | Digital Type 0 to 120 Deg.Cnt. Selectron Make |
| 10 | Timer | Digital Type 0 to 99 min |
| 11 | Generator | Built-In Solid-State Transformer Type |
| 12 | Outer Cabinet | M.S. powder coated (Siemens Grey Colour) |
